Brand New kit Flywheel + Generator Stator

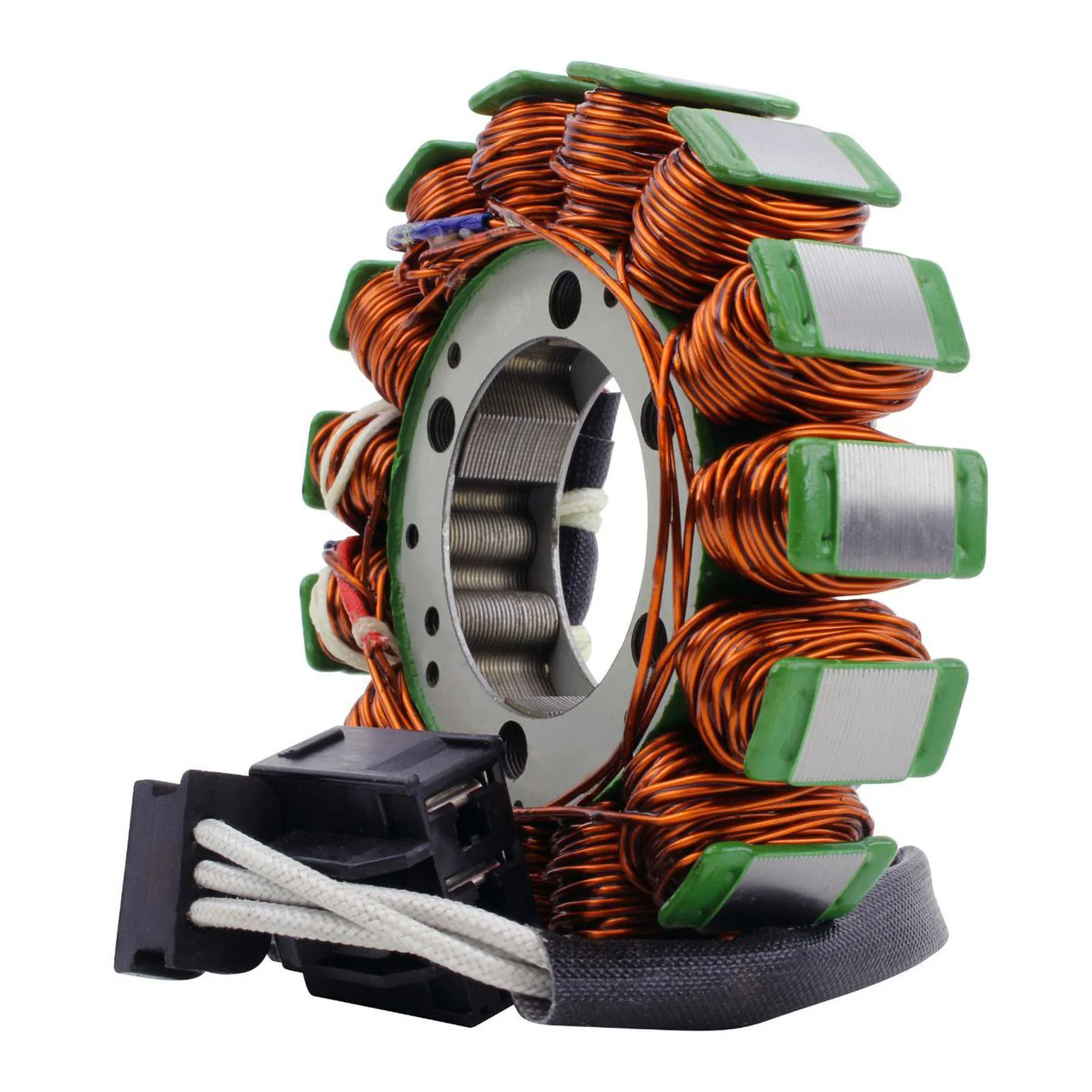

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Generator Stator Dimensions:

• Interior diameter: 42mm
• Exterior diameter: 105mm
• Thickness: 17mm
• Length of wires stator to grommet: 90mm
• Length of wires grommet to plug: 300mm

Other specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator: Between each White = 0.4 ohms +/-20%

Flywheel Dimensions:

• Exterior Diameter: 115mm
• Interior Diameter: 108mm
• Interior Diameter Center Housing: 16mm
• Exterior Diameter Center Housing: 24mm
• Thickness (exterior): 30mm
• Thickness (interior): 33mm

Please Note: This kit is compatible with RSV4 that have an engine number equal to or lower than 3413, otherwise you will need RMS900-103848. On rare occasion, this kit will work with Tuono V4. This kit includes a MITSUBISHI flywheel.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
